Bringing Acoustics Home

VersaTune | Engineered Composite Fiberglass Panel

The VersaTune’s engineered composite core creates a revolutionary acoustical wall panel that absorbs lower frequency acoustic energy more effectively than traditional panels. This is done without adding thickness or excessive cost. VersaTune improves the listening quality in the space by eliminating excessive bass reverberation. Through new manufacturing techniques, Kinetics Noise Control is able to boost the absorption coefficient in the 100 to 250 Hz 1/3 octave bands to an average 0.75. This is approximately 50% more low frequency absorption than standard panels.

The VersaTune panel is an engineered composite fiberglass panel. The VersaTune is identical in appearance to the popular High Impact HardSide so the designer can intermix panels on the same wall. The edges are chemically hardened for durability. Fabric is stretched over the panel, wrapped and bonded around the edges for a crisp, finished look.

Design for panel sizes up to a maximum 4 ft. x 10 ft. or custom shaped panels with angled or contoured perimeter cuts.

Description

A low frequency tuned fiberglass acoustical wall panel wrapped in a wide selection of fabrics. Available in a variety of edge treatments. Engineered sound control with thicknesses from 1-1/8 to 4-1/8 inches and sizes up to 4 ft. x 10 ft.

Composition

Acoustical Performance, 2-1/8" Thick VersaTune-30

Sound Absorption per ASTM C-423. Type A Mounting. Frequency, Hz

125 160 200 250 315 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000
0.78 0.75 0.75 0.78 0.97 0.97 0.86 0.84 0.82 0.79 0.78 0.77 0.76 0.76 0.75 0.77 0.78
VersaTune Acoustical Performance

Applications

  • Interior surfaces where increased low frequency acoustical performance and more balanced sound absorption is required

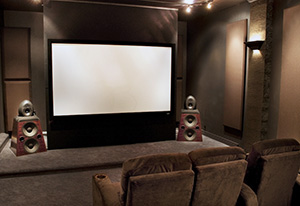

  • Home Theatres
  • Auditoriums
  • Music Rehearsal Spaces
  • Media Rooms
  • Multi-Purpose Rooms
  • Churches
  • Recording Studios
  • Pro Theatres

Mounting

  • HardSide Impaling Clips with Adhesive
  • Rotofast Clips
  • Z-Clips - movable
  • Velcro - movable

Edge Options

Edge Options

Video

Resources

Installation Guidelines
