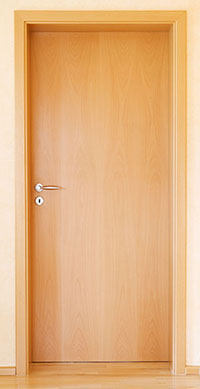

Wood Acoustical Doors

Model KWAD

Wood Acoustical Doors

Benefits

Overview

Room isolation designs are only as good as their weakest link, and residential doors present several challenges that can be met with Kinetics’ line of wood acoustical doors. First, the door itself, if not well-constructed, will transmit sound energy from one room to another. Second, air gaps around the perimeter of the door, if not sealed, are easy pathways for sound to transfer to adjacent spaces.

Additionally, most sound-rated doors are made of metal and are not attractive in residential environments. Finally, production lead-times can be extremely long and therefore unacceptable to the construction schedule.

Kinetics offers custom-manufactured STC-49 and STC-35 soundrated acoustical doors with improved lead times for production and the ultimate in design flexibility. Kinetics’ acoustical doors have been specifically designed for residential environments and offer a wide variety of standard and custom wood finishes, sizes, and acoustical seals.

Description

Noise Ratings

STC 49 KWAD-49 Provides superior performance for critical room isolation designs
STC 35 KWAD-35 Provides a cost-effective improvement over typical residential doors
STC 15-20 Typical residential doors

Full test reports available upon request

Construction
Kinetics acoustical wood doors are made with lab-tested noise control core materials and are finished in a variety of high-quality woods.

Kinetics acoustical doors include a standard set of sound-rated gaskets that consist of head/jamb seals (for sides and top) and sweeps (for door bottoms).

Technical Information

Standard Configurations

Wood Maple
Doors 36" x 80"
36" x 84"
Thickness 1-3/4"
Jamb Maple, up to 6-3/4" deep, pre-hung
Hinges Three 4-1/2", fully mortised, heavy-duty ball bearings, brushed stainless steel
Weight 7.8#/sq ft (STC 35)
9.2#/sq ft (STC 49)

Finishes

Unfinished (stainable)

Smooth-skinned and capable of receiving surfacemounted, raised-panel detail trim

Optional Configurations

Woods Poplar, Oak, Cherry
Many other custom veneers
Dimensions Single Doors: Up to 48" W, 120" H
Double doors and jamb also available

Perimeter Gasketing

Kinetics offers a variety of standard and optional perimeter gasketing products to seal the air gaps between the door, the door jamb, and the floor.

Standard Products

Pre-hung assemblies include all perimeter gasketing and consist of the following:

Slab-only assemblies include factory-assembled sweeps. Saddles and seals are also furnished for field installation.

Optional Products

Finishes

Standard finishes are anodized aluminum.
Optional finishes include Bronze, Gold Anodized, and Dark Anodized Bronze. (Not all finishes are avilable for each item.)

Consider these and other materials, available for purchase separately, to retro-fit existing doors for improved sound control in the field.
